EuPhO 2024, Експеримент — Задача 5. Task E.5 - Interaction time

Оригинал на условието (PDF)Съобщи за грешка

Всички материали от EuPhO 2024

"EuPhO 2024, Kutaisi, Georgia — Experimental Problems" · 2,5 т.

Условие

With the result from the previous task, it would be possible to determine the interaction time $\tau$ of the more elastic ball with the wooden surface. However, for the less elastic ball, there is no simple description such as Eq. 1. Alternatively, we can make the following assumption.

If, for a certain collision speed $v_0$ , the force experienced by the ball as a function of time can be described as $F_0(t) = f(t)$ , then for any other speed $v_1$ , the time dependence takes a similar shape and we can express the force as:

F_1(t) = a_1 f(b_1 t)\,.

Estimate and plot how the interaction time $\tau$ scales with the collision speed $v$ for collisions of the less elastic rubber ball with a solid surface.

Решение

Task E.5 - Interaction time

When the less elastic ball bounces, we can estimate the change of its momentum $\Delta p_1$ as:

\Delta p_1 = \int_t F_1(t)\mathrm{d}t = \frac{a_1}{b_1}\int f(t)\mathrm{d}t \propto F_{1\max}\tau_1,

where $F_{1\max} = a_1 F_{0\max}$ is the maximal force during the collision and $\tau_1 \approx \tau_0/b_1$ is the interaction time.

In other words,

\frac{\Delta p_1}{\Delta p_0} = \frac{v_1}{v_0} = \frac{F_{1\max}}{F_{0\max}}\cdot\frac{\tau_1}{\tau_0}.

By measuring $v_1/v_0 = \sqrt{h_1/h_0}$ and $\frac{F_{1\max}}{F_{0\max}} = \frac{U_1}{U_0}$ , we can estimate the time scaling $\tau_1/\tau_0$ :

\frac{U_1}{U_0} = \frac{\tau_1}{\tau_0}\cdot\frac{\sqrt{h_1}}{\sqrt{h_0}}, \qquad \text{or} \qquad \tau \propto \frac{U}{\sqrt{h}}

The measurements are in the table 7. We plot the dependency of $U/\sqrt{h_1}$ on $\sqrt{h_1}$ and find that it is horizontal up to the measurement errors (Fig. 12). In other words, $\tau$ does not change too much within the range of forces.

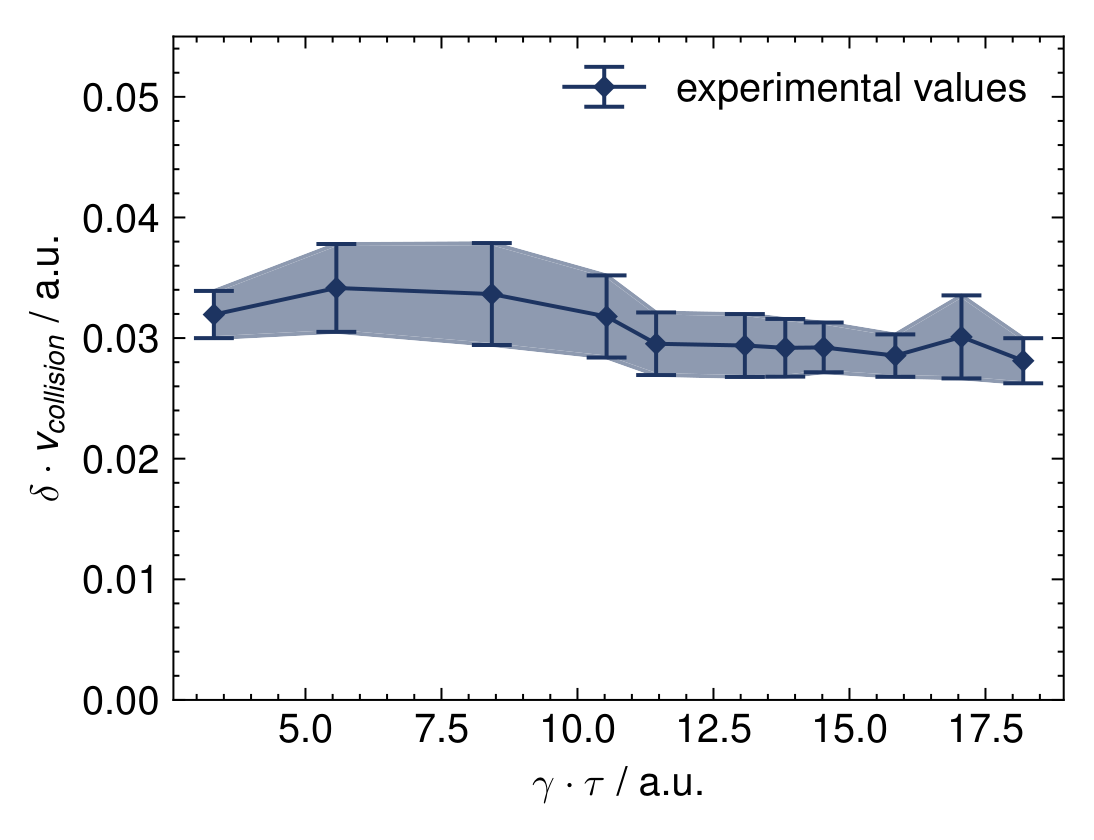

Plot of δ · v_collision / a.u. (0.00 to 0.05) versus γ · τ / a.u. (about 3 to 18): experimental values with error bars joined by a line with a shaded band, roughly horizontal around 0.03; legend 'experimental values'. — Figure 12

E.5 - Interaction time	Points
Theory	0.5
find how $a_1/b_1$ depends on $v$	0.3
express it through measurable ratios	0.2
Measurements and plots	1.5
0.1 per measured force value, up to 7 different force values	0.7
0.1 per repetition per data point, up to 3 repetitions	0.3
Plot	0.2
coordinates are related to theory	0.3
Conclusion ( $\tau$ doesn't depend on $v$ )	0.5
Total on E.5	2.5
